Sunsynk 8.8kWh 1P LV Hybrid Inverter
Couldn't load pickup availability

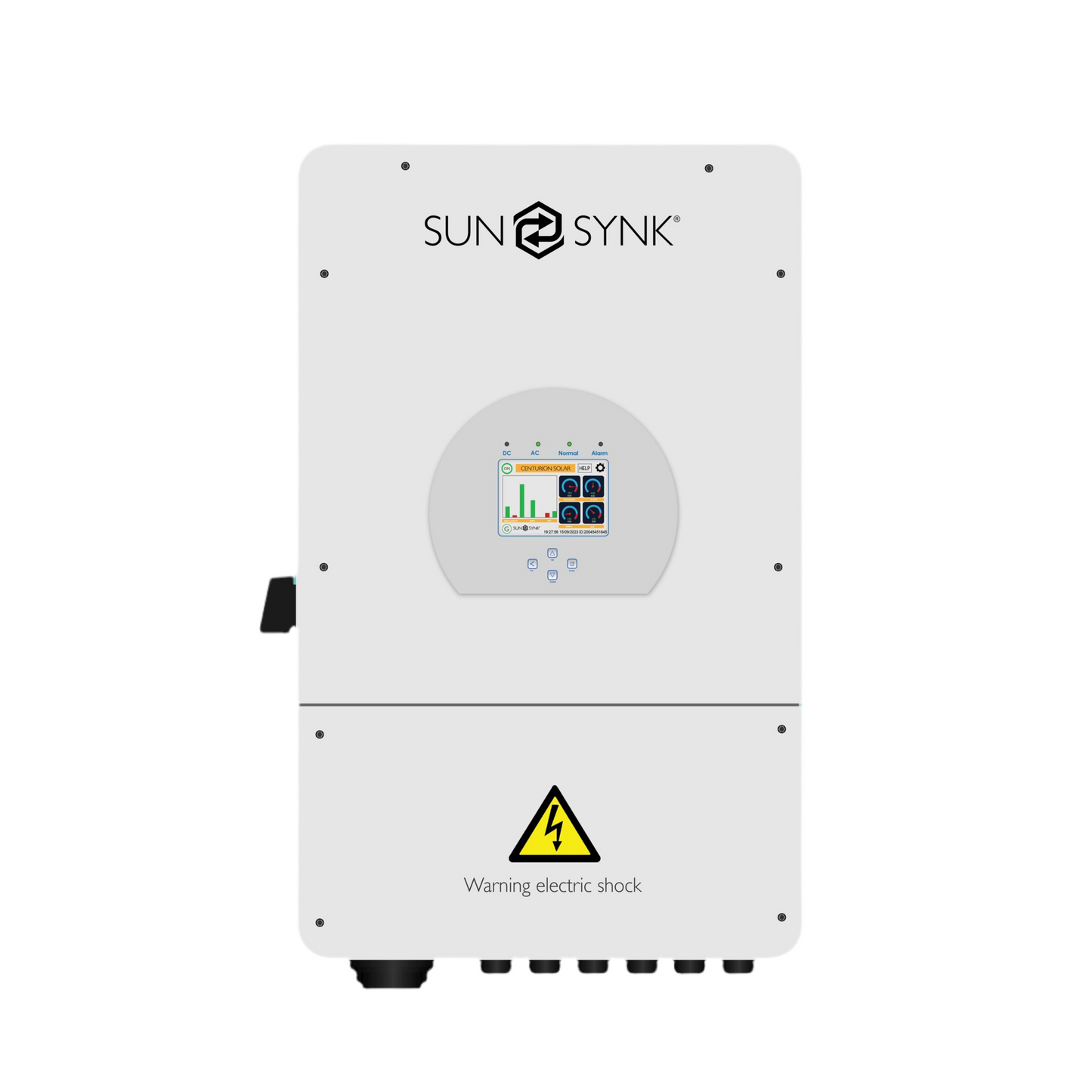

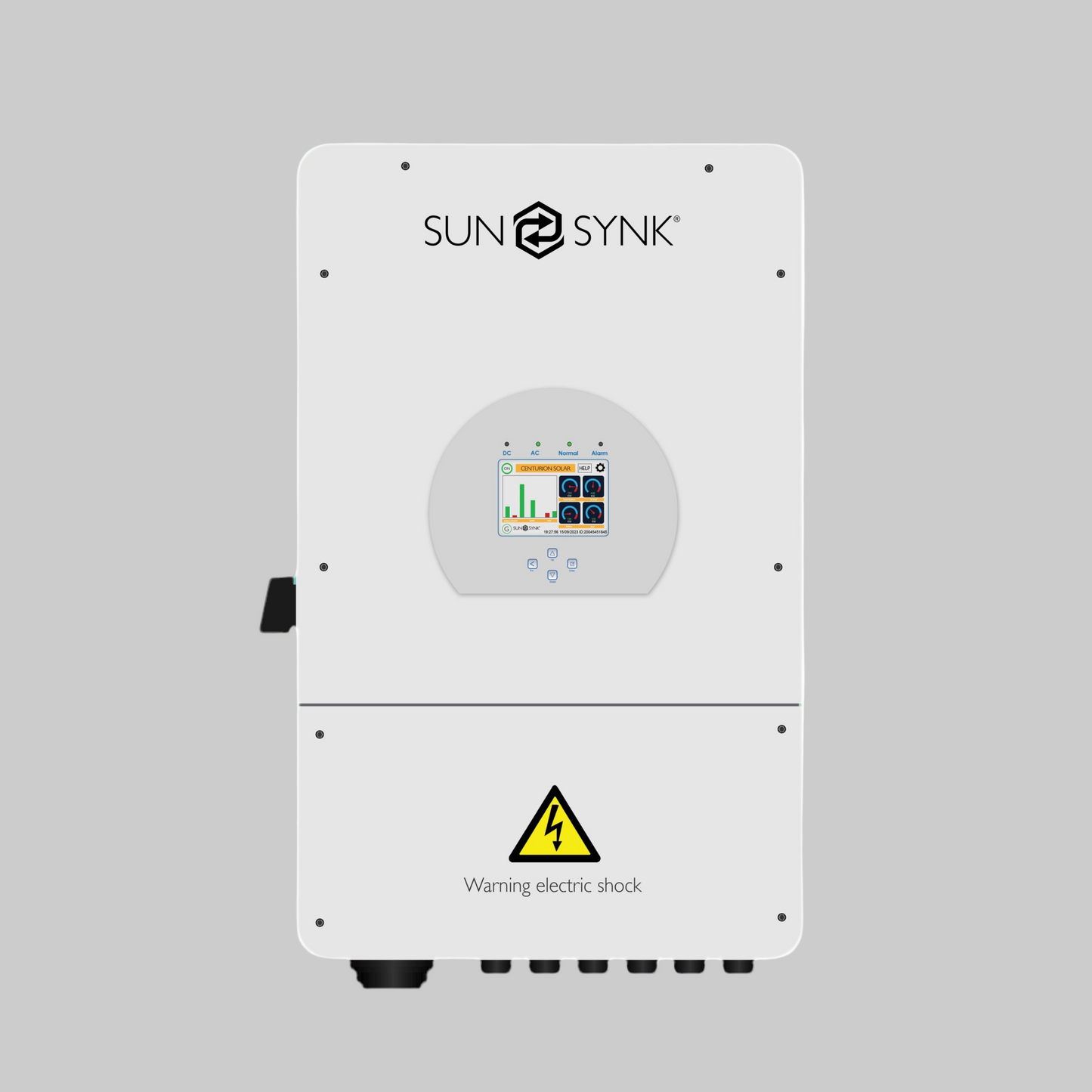

🔌 Sunsynk 8.8 kW 1-Phase Hybrid Inverter
Model: SUNSYNK-8.8K-SG04LP1
Brand: Sunsynk
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
⚡ Key Features
-
8.8 kW rated AC output — designed for large residential or light commercial solar applications.
-
Full hybrid operation — supports simultaneous PV, battery and grid input for efficient energy flow and backup.
-
High-efficiency power conversion — dual independent MPPT trackers optimize production from multiple PV strings.
-
Scalable energy system — supports parallel operation of up to 16 inverters for system expansion.
-
Advanced battery management — wide 40–60 V range with up to 190 A charge/discharge current for fast cycling.
-
Smart monitoring and control — built-in LCD touchscreen, Wi-Fi connectivity, and Sunsynk data portal compatibility.
-
Flexible operation modes — self-use, peak-shaving, and time-of-use programming.
-
Rugged outdoor design — IP65-rated enclosure suitable for harsh environments.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-8.8K-SG04LP1 |
| Rated AC Output Power | 8.8 kW |
| Max PV Input Power | ~11 kW |
| Max PV Input Voltage | 500 V |
| MPPT Voltage Range | 125 – 425 V |
| Number of MPPTs | 2 |
| Max PV Input Current | 18 A per MPPT |
| Battery Voltage Range | 40 – 60 V (48 V nominal) |
| Max Charge/Discharge Current | Up to 190 A |
| Max Efficiency | ~97.6 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~460 × 515 × 190 mm |
| Weight | ~23 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 8.8 kW Hybrid Inverter offers a dependable and powerful solution for households or small businesses seeking energy independence. With intelligent management, wide battery compatibility, and superior conversion efficiency, it delivers seamless solar-to-storage operation backed by Sunsynk’s trusted engineering quality.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
