Sunsynk HV 61.44kWh Battery Set
Couldn't load pickup availability

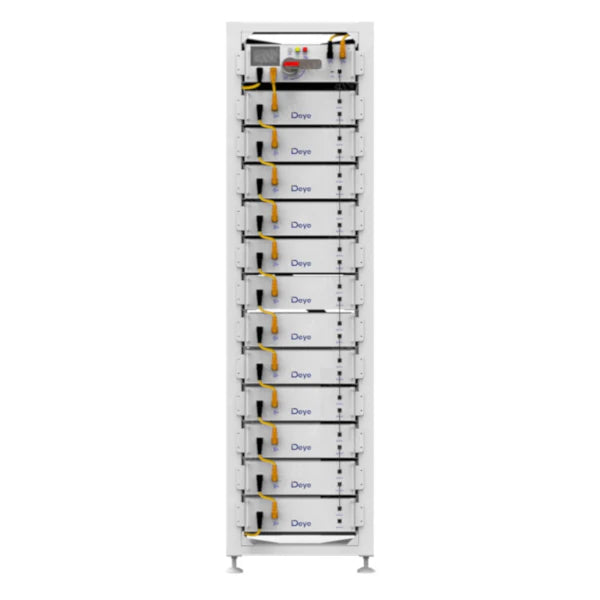

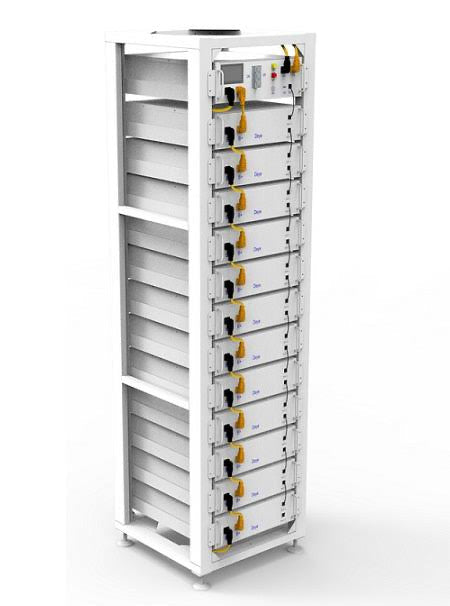

🔋 Sunsynk HV 61.44 kWh Battery Set
Model: HV-61.44
Brand: Sunsynk
Type: High-Voltage LiFePO₄ Battery Rack System (Modular, Indoor Rack Mount)
⚡ Key Features
-
Massive 61.44 kWh energy capacity — ideal for large residential, commercial or off-grid installations.
-
High-voltage system (≈ 538-691 V nominal) enabling efficient integration with large inverters and high-power systems.
-
LiFePO₄ (Lithium Iron Phosphate) chemistry — high safety, long cycle life (6,000+ cycles), excellent thermal stability.
-
Rack-mounted modular design — 12 modules in series, space efficient and service-friendly.
-
Fully scalable — parallel up to multiple stacks for expanding storage capacity as required.
-
Built for demanding environments — wide operating temperature range from -20 °C to +55 °C, robust construction and IP20 rating.
-
10-year product warranty for peace of mind and long-term reliability.
📐 Specifications
| Specification | Value |
|---|---|
| Model | HV-61.44 |
| Total Energy Capacity | 61.44 kWh |
| Nominal Voltage Range | ~538 V – ~691 V |
| Chemistry | LiFePO₄ (LFP) |
| Module Configuration | 12 modules in series |
| Max Charge/Discharge Rate | ~1C / up to 100 A |
| Operating Temperature | -20 °C (discharge) to +55 °C (charge) |
| Depth of Discharge (DoD) | 90% typical |
| Cycle Life | ≥6,000 cycles @ 70% end-of-life |
| Rack Dimensions (W×D×H) | Approximately 589 × 590 × 2,240 mm |
| System Weight | ~628 kg |
| IP Rating | IP20 (Indoor Rated) |
| Warranty | 10 years (limited) |
🏷️ Quality & Support
Sunsynk’s High-Voltage (HV) series is engineered for high-capacity energy storage demands — whether for large homes, commercial sites or off-grid systems. The HV 61.44 kWh Battery Set offers modular scalability, dependable performance and comprehensive local warranty and support.
Spec Sheet And Installation Manual
