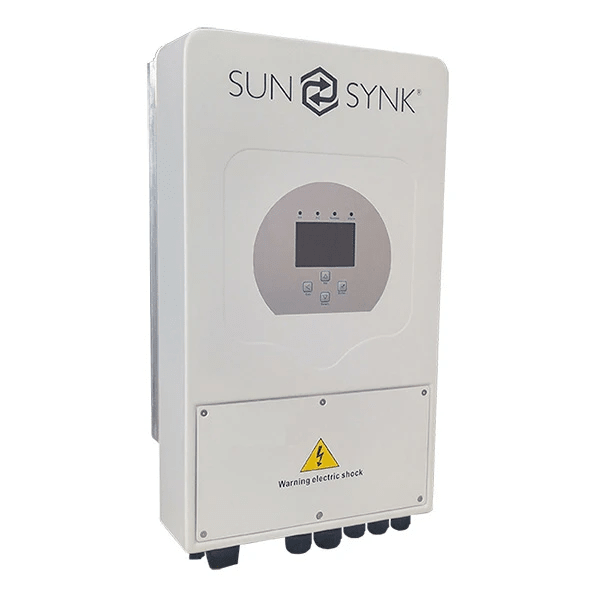

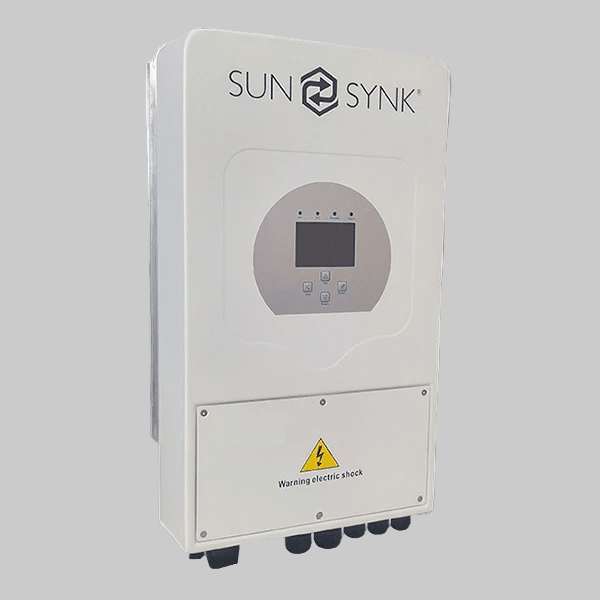

Sunsynk 5kW 1P LV Hybrid Inverter
Couldn't load pickup availability
🔌 Sunsynk 5 kW 1P Hybrid Inverter
Model: SUNSYNK-5K-SG04LP1
Brand: Sunsynk
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid Integration)
⚡ Key Features
-
5 kW rated AC output — ideal for small-to-medium residential solar installations with backup capability.
-
Hybrid operation — integrates PV generation, battery storage, and grid power for seamless energy management.
-
Dual MPPT inputs — support multiple PV string configurations and maximize system yield.
-
High charge/discharge capacity — up to 120 A battery current for efficient energy storage utilization.
-
Flexible energy modes — self-use, time-of-use, and backup operation with programmable logic.
-
Parallel capability — supports connection of up to 16 units for larger energy systems.
-
Smart monitoring — built-in display and app connectivity via Wi-Fi or RS485/CAN communication.
-
IP65 enclosure — designed for both indoor and outdoor environments.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUNSYNK-5K-SG04LP1 |
| Rated AC Output Power | 5 kW |
| Max PV Input Power | ~6.5 kW |
| Max PV Input Voltage | 500 V |
| MPPT Voltage Range | 125 – 425 V |
| Number of MPPTs | 2 |
| Max PV Input Current | 18 A per MPPT |
| Battery Voltage Range | 40 – 60 V (48 V nominal) |
| Max Charge/Discharge Current | Up to 120 A |
| Max Efficiency | ~97.6 % |
| Protection Rating | IP65 |
| Communication Interfaces | RS485, CAN, Wi-Fi |
| Dimensions (W × H × D) | ~460 × 515 × 190 mm |
| Weight | ~20 kg |
| Warranty | Standard manufacturer warranty |
🏷️ Quality & Support
The Sunsynk 5 kW Hybrid Inverter provides a reliable and efficient energy solution for households seeking solar self-consumption and backup power. Compact, durable, and intelligently designed, it balances performance with affordability — a trusted choice for modern residential energy systems.
